Lonix-LED Street Light
Wattage: 45W | 60W | 65W | 72W | 90W | 100W | 110W | 120W | 150W | 170W | 200W | 250W
Installation: Pole side-mounting with bracket arm, mounting height should be taken as per designer advice
- Elegantly designed powder coated aluminium pressure die casting housing
- Highly efficient, reliable with high luminous efficacy
- Glare free uniform light distribution
- More than 70% energy savings compared to HPSV/MHL luminaires
- IP66, High Ingress protection against dust & moisture
- Excellent thermal management – Ideal heat dissipation with good quality heat sink
- Available in cool white & warm white CCT
Application

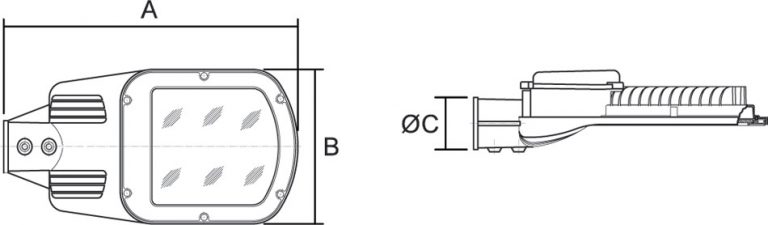

PRODUCT DRAWING
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (MM) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 45W | 220 -240 VAC,50Hz | >100lm/W | <10% | >0.95 | >70 | 365 | 190 | 105 |
| 60W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 365 | 190 | 105 |
| 65W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 365 | 190 | 105 |
| 72W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 365 | 190 | 105 |
| 90W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 425 | 210 | 110 |
| 100W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 425 | 210 | 110 |
| 110W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 485 | 235 | 115 |
| 120W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 485 | 235 | 115 |
| 150W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 555 | 260 | 115 |
| 170W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 625 | 320 | 125 |
| 200W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 625 | 320 | 125 |
| 250W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 625 | 320 | 125 |
Dimension tolerance:- ± 5mm
