LED Cleanroom Luminaire
Wattage: 36W
Installation: In false ceiling : can easily install by replacing the board through luminaire
- Duly powder coated CRCA MS housing in white finish with PMMA prismatic cover
- With opal diffuser for ensuring glare free uniform light distribution
- More than 70% energy savings compared to conventional lighting solution
- High luminous efficacy & better colour rendering
- IP65, High Ingress protection against dust & moisture
- Cutout size: 595mmX595mm, perfect for armstrong 2’X2′ ceiling
- Available in cool white, neutral white & warm white CCT
Application

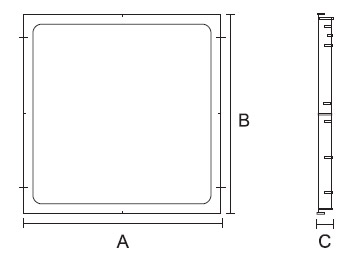

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 36W | 220-240 VAC,50Hz | >100lm/W | <10% | >0.95 | >80 | 620 | 620 | 70 |
Dimension tolerance:- ± 5mm
