LED Bulk Head
Wattage: 10W | 15W
Installation: Easy to install, Wall/Surface mounting: fix with the help of screws
- Capsule shaped design with powder coated aluminium pressure die cast housing
- Ideal designed for rough industry environment
- Polycarbonate diffuser to ensure uniform distribution of light
- More than 65% energy savings compared to conventional lighting solution
- IP66, High Ingress protection against dust & moisture
- Ideal solution for indoor & outdoor applications
- Available in cool white & warm white CCT
Application

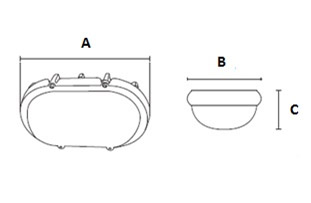

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 10W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 232 | 108 | 40 |
| 15W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 232 | 108 | 40 |
Dimension tolerance:- ± 5mm
