LED Baylight
Wattage: 120W | 150W | 200W
Installation: Easy to install by placing the fixture on hook & tighten the bolts properly through eyebolt. Bracket mounting also available.
- Elegantly designed powder coated aluminium pressure die housing
- Ideal heat dissipation with good quality heat sink
- Precise narrow beam and wide beam optics for indoor industrial requirement
- More than 50% energy savings compared to conventional lighting solution
- IP66, High Ingress protection against dust & moisture
- Available in Cool White & Warm White CCT
Application

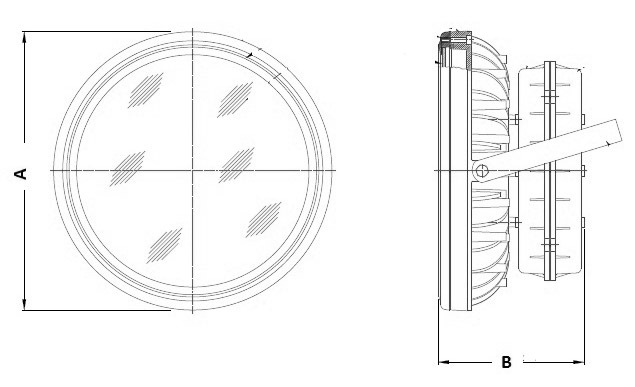

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|
| A | B | ||||||
| 100W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 314 | 165 |
| 120W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 314 | 165 |
| 150W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 314 | 165 |
Dimension tolerance:- ± 5mm
