LED Antirust Batten
Wattage: 20W | 40W
Installation: Easy installation, Wall/Surface mounting: fix with the help of screws
- Range of corrosion resistant and unbreakable polycarbonate housing
- Specially designed for indoor industrial application to reduce failure rates
- Dedicated optics provide precise symmetric light distribution
- More than 50% energy savings compared to conventional lighting solution
- High brightness with uniform light distribution
- IP65 provides better performance against rust and moisture
- Available in cool white & warm white CCT
Application

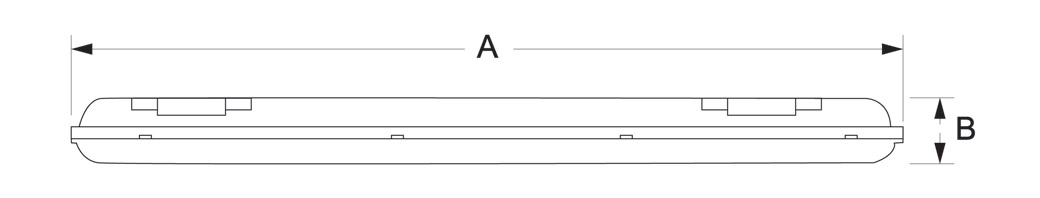

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|
| A | B | ||||||
| 20W | 220-240 VAC,50Hz | >95 lm/W | <10% | >0.95 | >70 | 580 | 85 |
| 40W | 220-240 VAC,50Hz | >95 lm/W | <10% | >0.95 | >70 | 1180 | 85 |
Dimension tolerance:- ± 5mm
