Multi-LED Floodlight
Wattage: 30W | 36W | 60W | 90W | 100W | 120W
Installation: External mounting arrangement through bracket
- Robust housing with epoxy powder coated pressure die casted aluminium
- Ideal heat dissipation with good quality heat sink
- High efficacy & low power consumption
- Wide beam angle & uniform light distribution
- Higher energy savings & environment friendly product
- IP66, High Ingress protection against dust & moisture
- Available in cool white & warm white CCT
Application

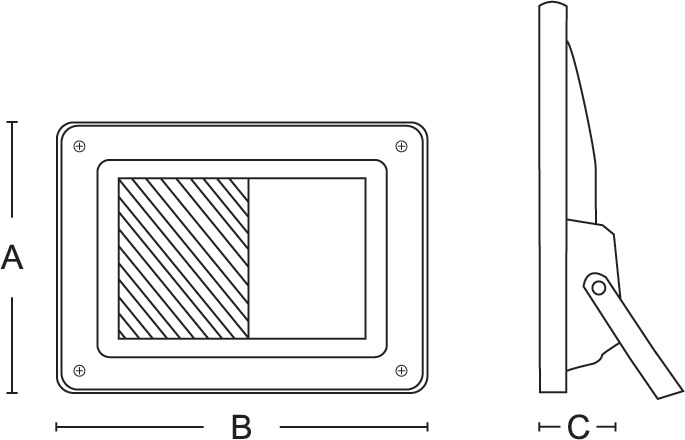

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 30W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 155 | 190 | 55 |
| 36W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 155 | 190 | 55 |
| 60W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 190 | 230 | 120 |
| 90W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 235 | 290 | 155 |
| 100W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 235 | 290 | 155 |
| 120W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 235 | 290 | 155 |
Dimension tolerance:- ± 5mm
